Metal Körüklü Vana (Gönye Tip) / Metal Bellow Sealed Globe Valve (Angle Type)

Ürün Detayları

Uygulama Alanları:

Buhar, Sıcak Su, Termal Akışkan, Kızgın Yağ
Steam, Hot Water, Thermal Fluids, Hot Oil

Çalışma Sıcaklığı:

PN16: –10°C / +300°C
PN25: –10°C / +350°C
PN40: –10°C / +400°C

Teknik Özellikler:

Çalışma Şartları / Working Conditions: DIN 2401
Bağlantılar / Ends: DIN 1092-2
Çalışma Basıncı / Working Pressure: PN16/PN25/PN40
Face to Face Dimensions: TS EN 558-1

Gövde Seçenekleri:

GG25 / GGG40.3 / GSC-25

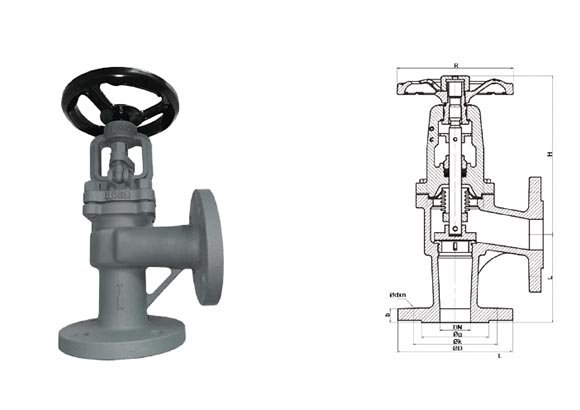

Metal Körüklü Vana (Gönye Tip) / Metal Bellow Sealed Globe Valve (Angle Type)

PARÇA ADI	PART NAME	MALZEME / MATERIAL
GÖVDE	BODY	GG25 / GGG40.3
SİT	SEAT	AISI 420
KAPAK	BONNET	GG25 / GGG40.3
MİL	STEM	AISI 420
KÖRÜK	BELLOWS	AISI 316Ti
CONTA	GASKET	GRAPHITE
SALMASTRA	PACKING	GRAPHITE
PUL	WASHER	ST37
PUL	WASHER	SPRING ST.
KAPAK BURCU	BONNET BUSH	STEEL
SEGMAN	RETAINING RING	SPRING ST.
İNDİKATÖR	INDICATOR	STEEL
PİM	PIN	AISI 304
SALMASTRA BASKISI	PACKING JOINT	STEEL
KLAPE	DISC	AISI 420
SARMA PİM	SPRING PIN	AISI 304
HENDİL	HANDWHEEL	GG25
HENDİL SOMUNU	HANDWHEEL NUT	STEEL
CİVATA	BOLT	8.8 STEEL GALV.
SETSKUR	GRUB SCREW	8.8 STEEL
GRESÖRLÜK	LUBRICATING NIPPLE	STEEL

CODE IMPA	DN	L	OR	H	STROK	PN16					PN25					PN40					KG
CODE IMPA	DN	L	OR	H	STROK	ØD	ØK	Øg	b	n	ØD	ØK	Øg	b	n	ØD	ØK	Øg	b	n	KG
755341	15	90	125	165	6	95	65	45	14	4	95	65	45	14	4	95	65	45	14	4	4,75
755342	20	95	125	165	6	105	75	58	16	4	105	75	58	18	4	105	75	58	18	4	5,35
755343	25	105	125	177	8	115	85	68	16	4	115	85	68	18	4	115	85	68	18	4	6,15
755344	32	105	125	175	8	140	100	78	18	4	140	100	78	20	4	140	100	78	20	4	7
755345	40	115	150	205	13	150	110	88	20	4	150	110	88	20	4	150	110	88	20	4	10,7
755346	50	125	150	208	13	165	125	102	20	4	165	125	102	22	4	165	125	102	22	4	14
755347	65	145	175	220	16	185	145	122	20	4	185	145	122	24	8	185	145	122	24	8	19
755348	80	155	175	230	20	200	160	138	22	8	200	160	138	26	8	200	160	138	26	8	22
755349	100	175	225	275	25	220	180	158	26	8	235	190	162	28	8	235	190	162	28	8	35,8
755350	125	200	225	340	32	250	210	188	26	8	270	220	188	30	8	270	220	188	30	8	54
755351	150	225	300	407	40	285	240	212	28	8	300	250	218	34	8	300	250	218	34	8	72
755353	200	275	500	440	50	340	295	268	36	12	360	310	278	40	12	360	310	278	40	12	116
